O-ring Dimensions
An O-ring is a circular torus ring (see figure below).Only two of the three dimensions-the inside diameter (ID),the cross section (CS) and outside diameter (OD) are required to completely specify the size of an O-ring.
|
|
O-rings are available in various metric and inch standard sizes. Sizes are specified by the inside diameter and cross section.
?
Classification of O-ring Application
O-ring seals are classified as static or dynamic. Static seals are divided into radial (piston/rod seals) and axial (face seal) by compression direction. Most dynamic seals are radially compressed, featuring reciprocating motion and rarely intermittent rotary or oscillating motion.
|
| Direction of Compression |
|
Seal Types and Groove Dimensions
The majority of O-ring seals can be categorized into piston,rod or face seal.Typically the O-ring is captured in a rectangular groove.

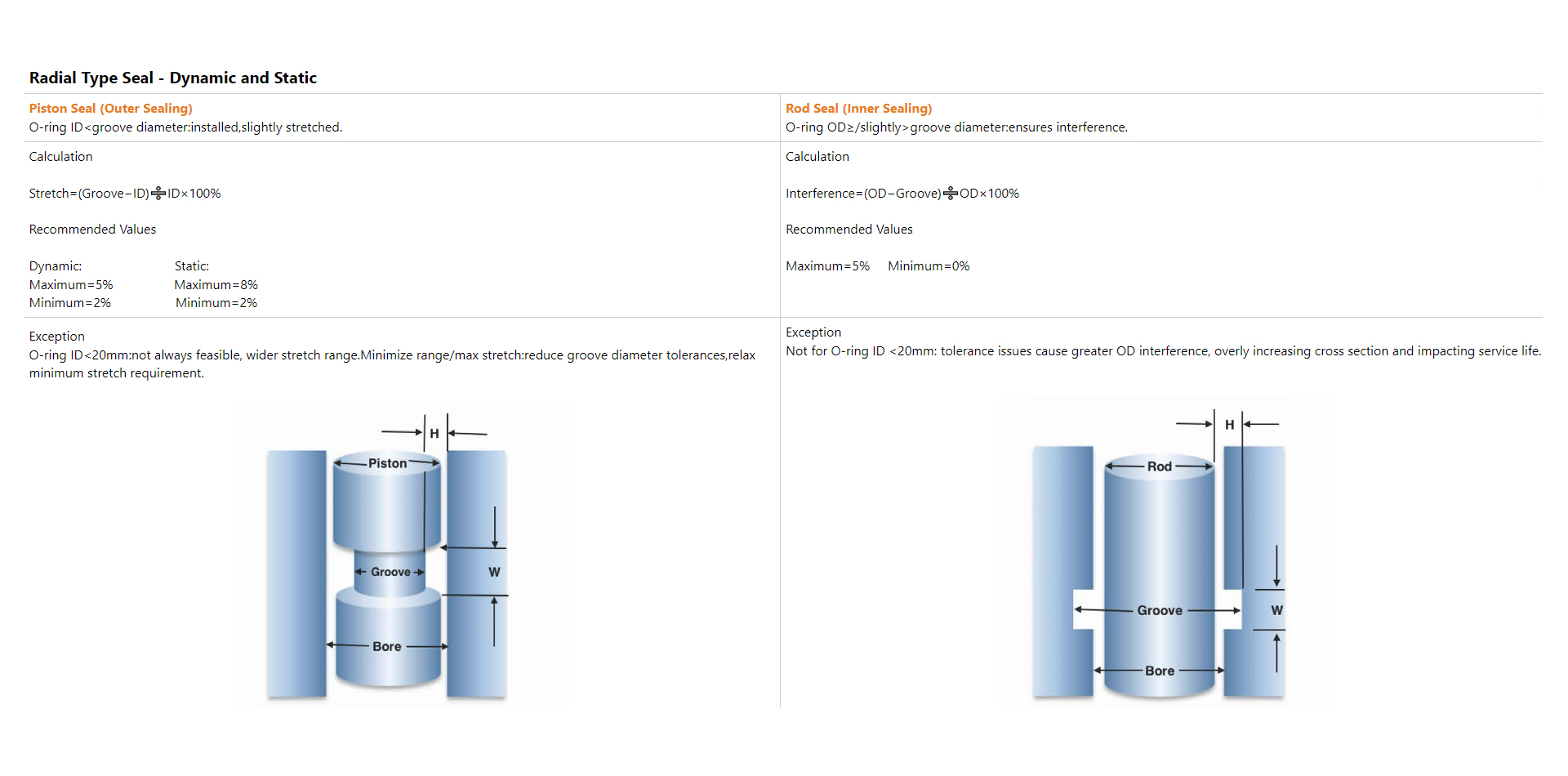

Calculation of groove dimension for each seal type is shown below.
|
